Overparameterized Regression (\(p>n\))

If the matrix \(X^\top X\) is not invertible, then we have infinitely many regression solvers. This is particularly the case when \(p>n\).

Example 17 (Regression with \(p>n\))

We consider a toy regression task, where the data is given by following three data points (observations) of one feature.

D = np.array([5,3,1])
y = np.array([2,5,3])
pandas.DataFrame({"x1":D,"y":y})

That is, our given data looks as follows:

\(x\)	\(y\)
5	2
3	5
1	3

We fit a polynomial of degree \(k=3\). For polynomial regression functions \(f:\mathbb{R}\rightarrow\mathbb{R}\) we have

\[f(x) = \beta_0 +\beta_1 x+ \beta_2x^2 + \beta_3x^3 = \phi(x)^\top\bm\beta,\]

where

\[\bm\phi(x)^\top=\begin{pmatrix}1& x& x^2& x^3\end{pmatrix}.\]

The design matrix gathers the transposed feature vectors of the data matrix:

\[\begin{split}X = \begin{pmatrix} \phi^\top(5)\\ \phi^\top(3)\\ \phi^\top(1)\end{pmatrix} = \begin{pmatrix} 1 & 5 & 25 & 125\\ 1 & 3 & 9 & 27\\ 1 & 1 & 1 & 1\end{pmatrix}\end{split}\]

We have \(n=3\) observations of \(p=4\) features in the design matrix, and hence, \(p>n\).

We have to solve the system of equations given by \(X^\top X \bm\beta = X^\top \vvec{y}\):

\[\begin{align*} \begin{pmatrix} 3 & 9 & 35 & 153\\ 9 & 35 & 153 & 707\\ 35& 153 & 707 & 3369\\ 153& 707 & 3369 & 16355 \end{pmatrix} \bm\beta = \begin{pmatrix} 10\\ 28\\ 98\\ 388 \end{pmatrix} \end{align*}\]

We can solve this system of equations by hand. There are multiple ways to do this. One is to transform the equations above into an upper triangle form. We detail the steps to do this in Exercises. As a solution set of regression solvers in dependence of \(\beta_3\), we get

\[\begin{split}\left\{\beta = \begin{pmatrix}\frac{1}{8}-15\beta_3\\3.5 +23\beta_3\\-\frac{5}{8} -9\beta_3\\\beta_3 \end{pmatrix} \mid \beta_3\in\mathbb{R} \right\}.\end{split}\]

In the example above, we could compute the set of regression vectors by hand, but how can we compute the set of regression vectors when the dataset bigger? How can we numerically compute the set of all regression vectors?

Characterizing the Set of Regression Solvers with SVD

We derive now a general solution for the (set of) regression solvers. to do so, we have a look into the SVD of \(X\), that gives us more insight into the regression equation when \(X^\top X\) is not invertible. You might remember from the linear algebra recap, that the invertibility of a matrix is determined by the singular values of the matrix: if all the singular values are larger than zero, then the matrix is invertible, otherwise not. The singular values of \(X^\top X\) are determined by the singular values of \(X=U\Sigma V^\top\), since we have

\[\begin{align*} X^\top X = V\Sigma^\top \underbrace{U^\top U}_{=I} \Sigma V^\top = V\Sigma^\top \Sigma V^\top. \end{align*}\]

Given the singular value decomposition of \(X\), we can try to solve Eq. (8) for \(\bm\beta\):

(9)\[\begin{align} X^\top X\bm{\beta} &= X^\top \vvec{y} \quad \Leftrightarrow \quad V\Sigma^\top\Sigma V^\top \bm{\beta}= V\Sigma^\top U^\top\vvec{y} \quad \Leftrightarrow \quad \Sigma^\top\Sigma V^\top \bm{\beta}= \Sigma^\top U^\top\vvec{y}, \label{eq:beta1} \end{align}\]

where the last equality follows from multiplying with \(V^\top\) from the left.

Observation 1 (Characterization of Regression solvers by SVD)

The global minimizers \(\bm{\beta}\) to the Linear Regression task with design matrix \(X\), having the SVD \(X=U\Sigma V^\top\), are given by

\[\{\bm{\beta}\in\mathbb{R}^p\mid \Sigma^\top\Sigma V^\top \bm{\beta}= \Sigma^\top U^\top\vvec{y} \}.\]

\(\Sigma^\top\Sigma\in\mathbb{R}^{p\times p}\) is a diagonal matrix, where not all elements on the diagonal are nonzero if \(n<p\). Hence, it does not have an inverse if \(n<p\). This becomes maye a bit more clear when we look at the following observation

Observation 2 (Singular value matrix of rank \(r\))

Let \(X\in\mathbb{R}^{n\times p}\) be a matrix with rank \(r\), meaning that \(X\) has only \(r\) nonzero singular values. Let \(X=U\Sigma V^\top\) be the SVD of \(X\), then the matrix \(\Sigma\) looks as follows:

\[\begin{align*} \Sigma= \left( \begin{array}{c:r} \begin{matrix} \sigma_1 & \ldots & 0 \\ \vdots & \ddots & \vdots \\ 0 & \ldots & \sigma_r \\ & \vvec{0} & \end{matrix} & \vvec{0} \end{array} \right) = \left( \begin{array}{c:r} \begin{matrix}\Sigma_r\\\vvec{0}\end{matrix} & \vvec{0} \\ \end{array} \right). \end{align*}\]

The matrices \(\vvec{0}\) indicate here constant zero matrices whose dimensionalities are inferred from context. The constant zero matrix below \(\Sigma_r\) has a dimensionality of \(n-r\times r\) and the constant zero matrix on the right has a dimensionality of \(n\times p-r\). Correspondingly, if \(n=r\), then the lower zero matrix doesn’t exist and if \(r=p\), then the zero matrix on the right doesn’t exist.

The notation of Observation (Singular value matrix of rank r) helps us now to derive the set of all regression solvers.

Theorem 14 (Set of all regression solvers)

Let \(X=U\Sigma V^\top\in\mathbb{R}^{n\times p}\) be the SVD of the design matrix of the Linear Regression task. If only \(r<p\) singular values of \(X\) are nonzero (\(X\) has a rank of \(r\)), then the set of global minimizers \(\bm{\beta}\) is given by

\[\begin{split}\left\{\bm{\beta}= V\begin{pmatrix}\Sigma_r^{-1} U_r^\top\vvec{y}\\z\end{pmatrix}\mid z\in\mathbb{R}^{p-r} \right\}.\end{split}\]

\(\Sigma_r\) denotes here the matrix containing only the first \(r\) rows and columns of the singular values matrix \(\Sigma\) and \(U_r\) denotes the matrix containing the first \(r\) left singular vectors (the first \(r\) columns of \(U\)).

Proof. We start at the characterization of regression solvers by SVD (Observation):

(10)\[\begin{align} \Sigma^\top\Sigma V^\top\bm\beta &= \Sigma^\top U_r^\top y\\ \Leftrightarrow \left(\begin{array}{cc} \begin{matrix} \Sigma_r&\vvec{0}\end{matrix} \\\hdashline \vvec{0} \end{array}\right) \left( \begin{array}{c:r} \begin{matrix}\Sigma_r\\\vvec{0}\end{matrix} & \vvec{0} \\ \end{array} \right) V^\top \bm\beta &= \left(\begin{array}{cc} \begin{matrix} \Sigma_r&\vvec{0}\end{matrix} \\\hdashline \vvec{0} \end{array}\right) U_r^\top y \end{align}\]

We see here that only the first \(r\) equations are relevant, the remaining equations \(0=0\) are evidently true. We further shorten the notation by setting \(\hat{\bm\beta}=V^\top\bm\beta\). We have then

(11)\[\begin{align} \Sigma_r\begin{pmatrix} \Sigma_r & \vvec{0}\end{pmatrix}\hat{\bm\beta} &= \Sigma_r U_r^\top y\\ \Leftrightarrow \begin{pmatrix} \Sigma_r & \vvec{0}\end{pmatrix}\hat{\bm\beta} &= U_r^\top y\\ \Leftrightarrow \begin{pmatrix} I_r & \vvec{0}\end{pmatrix}\hat{\bm\beta} &= \Sigma_r^{-1} U_r^\top y\\ \Leftrightarrow \hat{\bm\beta}_{0:r} &= \Sigma_r^{-1} U_r^\top y \end{align}\]

We see that only the first \(r\) coordinates of \(\hat{\bm\beta}\) are determined by the given equation. What we have in the rest of the coordinates is free to choose and the equation will still hold. We model the coordinates that are free to choose with the vector \(z\). Then we have

(12)\[\begin{align} \hat{\bm\beta} &= \begin{pmatrix}\Sigma_r^{-1} U_r^\top y\\z \end{pmatrix}\\ \Leftrightarrow V^\top\bm\beta &= \begin{pmatrix}\Sigma_r^{-1} U_r^\top y\\z \end{pmatrix}\\ \Leftrightarrow \bm\beta &= V\begin{pmatrix}\Sigma_r^{-1} U_r^\top y\\z \end{pmatrix} \end{align}\]

Example Determination of Regression Solvers by SVD

We consider again the data from Example 17. Yet, instead of computing the solution by hand, we implement now a general scheme to obtain the set of regression vectors. First, we compute the SVD of the design matrix \(X\)

D = np.array([5,3,1])
y = np.array([2,5,3])
def ϕ(x):
    return np.row_stack((np.ones(x.shape[0]),x, x**2, x**3))
X=ϕ(D).T
U,σs,Vt = linalg.svd(X, full_matrices=True)
V=Vt.T

/tmp/ipykernel_7232/3017518869.py:4: DeprecationWarning: `row_stack` alias is deprecated. Use `np.vstack` directly.
  return np.row_stack((np.ones(x.shape[0]),x, x**2, x**3))

When we look at the singular values, then we have \(r=3<4=p\).

σs

array([130.7 ,   4.2 ,   0.84])

Correspondingly, the matrix \(\Sigma^\top\) has a row of zeros at the bottom.

Σ = np.column_stack((np.diag(σs),np.zeros(3)))
Σ.T

array([[130.7 ,   0.  ,   0.  ],
       [  0.  ,   4.2 ,   0.  ],
       [  0.  ,   0.  ,   0.84],
       [  0.  ,   0.  ,   0.  ]])

Correspondingly, we see in the set of equations given by \(\Sigma^\top \Sigma V^\top \beta = \Sigma^\top U \vvec{y}\) that the last equation is always true (\(0=0\)).

\[\begin{align*} \begin{pmatrix} 157.18 & 724.22 & 3445.93 & 16714.05\\ -4.36 & -8.61 & -14.36 & 3.38\\ 0.58 & 0.25 & -0.32 & 0.05\\ 0 & 0 & 0 & 0 \end{pmatrix} \beta &= \begin{pmatrix} 415.45 \\ -21.56 \\ 1.04 \\ 0 \end{pmatrix} \end{align*}\]

We have an underdetermined system. There are only 3 equations to determine 4 parameters of \(\beta\). If you are going to solve this system by hand, then you will see that one parameter is always left over (it can’t be determined by the given equations). Setting this parameter to any number yields then one of the infinite solutions to the regression problem. For example, we can set \(\beta_3=2\).

We can now calculate a \(\beta\) in the set of global minimizers. If random=True then a random matrix replaces the zero rows in the pseudo inverse of \(\Sigma^\top\Sigma\).

def get_beta(U,Σ,V,random =True):
    Σ_pseudoinv = Σ.copy()
    Σ_pseudoinv[Σ>0] = 1/Σ[Σ>0]
    w = Σ_pseudoinv.T@U.T@y
    if random:
        p=V.shape[1]
        r=(Σ>0).sum() # the number of nonzero singular values
        w[r:p]=np.random.rand(p-r)*50
    return V@w

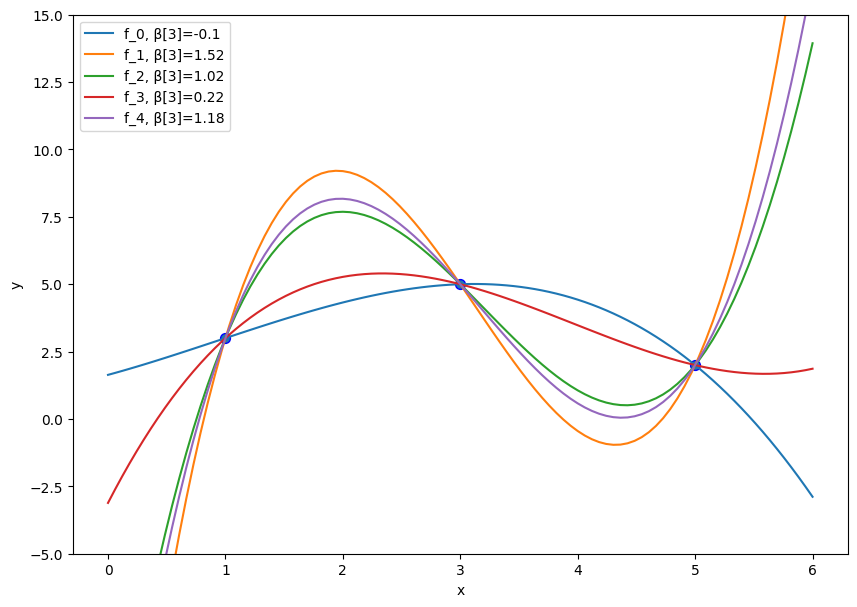

Plot it! The function resulting from setting random=False is the one in blue.

plt.figure(figsize=(10, 7))
x = np.linspace(0, 6, 100)
β = get_beta(U,Σ,V,random = False)
f_x = ϕ(x).T@β
plt.plot(x, f_x, label="f_0"+", β[3]="+str(np.round(β[3],2)))
for i in range(1,5):
    β = get_beta(U,Σ,V)
    f_x = ϕ(x).T@β
    plt.plot(x, f_x, label="f_"+str(i)+", β[3]="+str(np.round(β[3],2)))
plt.scatter(D, y, edgecolor='b', s=50)
plt.xlabel("x")
plt.ylabel("y")
plt.ylim((-5, 15))
plt.legend(loc="best")
plt.show()
